How a Vortex Maintenance Gate Retrofit Eliminated Costly Downtime at a Sugar Processing Facility

A sugar processing facility eliminated a critical maintenance bottleneck by retrofitting a Vortex Quantum Series Maintenance Gate (Model No. MSC10, configured for vibration) at the outlet of its vibratory bin discharger. The solution included a square-to-round outlet flange transition with a welded BFM fitting, a 250 mm 304 stainless steel BFM spigot, and a BFM Seeflex flexible connector—forming a complete, dust-tight isolation assembly suited to food-grade sugar handling. Facilitated by Vortex representative Ball Sales & Engineering, the retrofit allows technicians to isolate downstream equipment for service without draining the silo or discarding usable product.

What Problem Did the Facility Face?

The facility's bulk handling system was originally installed by an OEM that did not include a maintenance gate at the vibratory bin discharger outlet. As a result, the downstream lump breaker and rotary valve were directly exposed to the standing column of sugar above—meaning any routine service required operators to first empty the entire silo. This created three compounding problems:

• Production stoppages every time downstream maintenance was required
• Product waste, as sugar had to be removed and was at risk of contamination or loss
• Extended downtime, turning routine maintenance into a costly, time-consuming procedure

How Did the Vortex Maintenance Gate Solve It?

The retrofit gave the facility on-demand control of material flow. Closing the gate fully isolates the hopper from the equipment below—without emptying the silo. Technicians can now safely access, inspect, and service the lump breaker and rotary valve while sugar remains in the hopper above. Once maintenance is complete, the gate reopens and normal operations resume—converting a difficult shutdown into a routine task.

Why Was the Vortex Quantum Series Maintenance Gate Specified?

The Vortex Quantum Series Maintenance Gate (Model No. MSC10) was selected based on performance and compliance requirements specific to food-grade sugar processing:

• Positive seal to atmosphere — Prevents material leakage and dust bypass during isolation
• Hard polymer liners; no metal-on-metal contact — Eliminates galling, binding, and foreign metal fragment contamination
• FDA-compliant materials — Stainless steel contact areas and hard polymer liners meet food handling standards
• No internal cavities — Prevents wedging, lodging, and product spoilage within the gate body
• Closes through a standing column of material — Enables isolation even under upset conditions
• PTFE-treated bonnet packing gland — Delivers a dust-tight seal with superior wear resistance over rubber alternatives
• Lightweight, narrow-profile construction — Suited to space-constrained installations

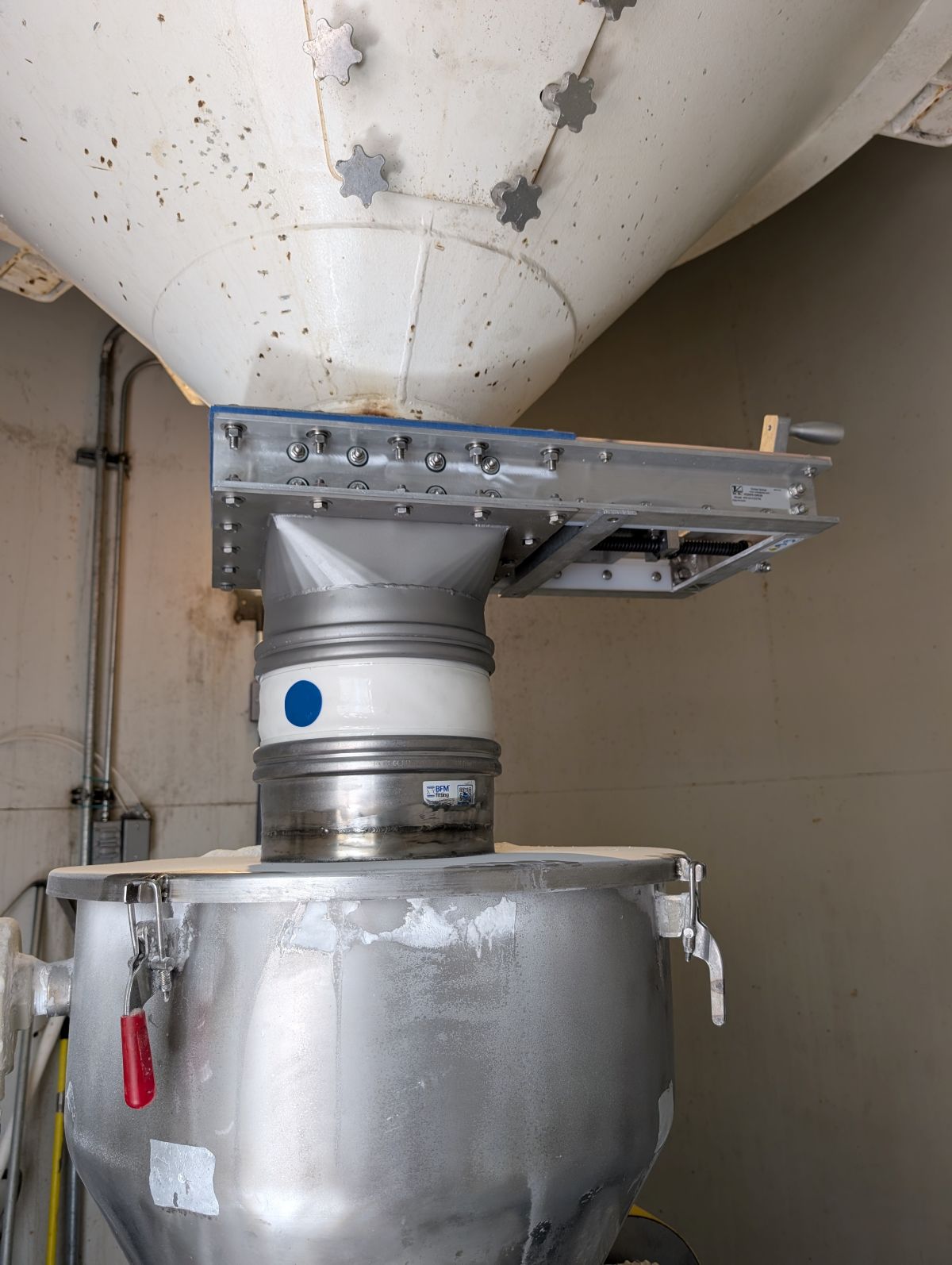

The 10-inch square gate was configured for vibration to match the vibratory bin discharger, and supplied with a square-to-round outlet flange transition with welded BFM fitting, a 250 mm 304 stainless steel BFM spigot, and a BFM Seeflex flexible connector. The Maintenance Gate is available in square and round configurations, from 6–18 in (150–455 mm), and supports gravity flow and dilute phase pneumatic conveying up to 15 psig (1 barg).

Key Outcomes of the Retrofit

• Eliminated unnecessary product removal — Technicians no longer need to drain the silo before servicing downstream equipment
• Reduced maintenance downtime — Service on the lump breaker and rotary valve is now efficient and safe
• Enhanced system reliability — Correct gate placement improves the long-term maintainability of the bulk handling system
